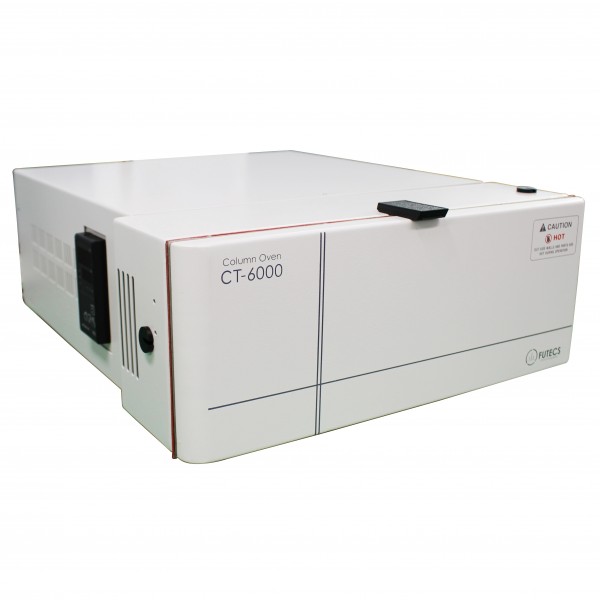

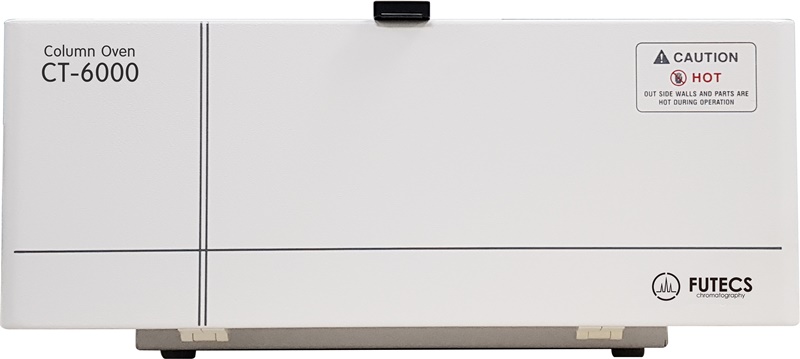

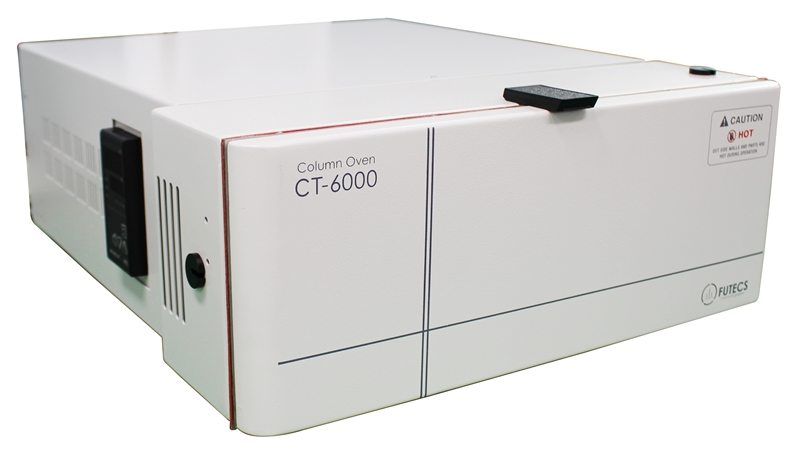

Column Oven Model CT-6000
Column Oven
Model CT-6000
To Create an complete system capable of solving any HPLC, GPC Systems.
The CT-6000 is modular offers a choice of high performance pumps and interchangeable detector, broadest range of applications.
Column temperature control in ion-exchange, GPC, partition and absorption liquid chromatography is essential to detector baseline stability and retention time reproducibility.
Even in air conditioned laboratories, a 3℃ to 4℃ daily fluctuation is not uncommon. The variation is sufficient to cause erroneous quantitation or peak misidentification, particularly in automated system, or where temperature sensitive detectors are used.
The LCD dispaly in the leftside panel show the "Set" and "Actual" temperature. Elevated column temperatures benefit the chromatograph in several ways; through shorter analysis time, greater sensivity and mass transfer effects.
▶ Specifications
Model CT-6000 |
|
Temp range |
Ambient ( -3℃) ~ 100℃ |
Temp accuracy |
±0.1℃ |
Temp stability |
±0.2℃ |
Temp Reprocibility |
±0.1℃ |
Safety |
Temperature limit setting |
over temperature |
|
Alarm |
|
External Control |
RS-232C, Microprocessor PID Control system |
Power |
110-240, 50/60Hz |
Dimensions | 430 x 200 x 500mm (WxHxD) |
Weight | 18kg |
▶ Ordering Informations
Cat No. | DESCRIPTIONS |
CT-6000-000 | Column Oven, Ambient - 3℃ ~ 100℃ |
